UNDERGROUND CABLING

Centaur have more than 28 years of experience in Underground Cabling, In 1994 we were awarded with our first project as an EPC Contractor for Design, Supply and Installation of MV and LV electric power network in city of Ras Al Khaimah -153kms.

Our HV cable competencies range from route planning, surveying and engineering to interface handling. We work in desert as well as City areas for underground cabling upto 400kV. We have an experience working right from the route design to keeping in mind various aspects of local regulations and installation requirements etc.

DESIGN

Our In-house design team, backed by vast experience and knowledge gained throughout the years, has equipped the company with the capability to executes complete design of Underground Cabling works from 11kV upto 400kV, which includes

  • Detailed feasibility study
  • Engineering plan
  • Survey and design

ASSETS

To meet the growing stringent demands of the power sector, the latest Machinery and equipment used in this field are possessed by Centaur. Some of them are as follows:

  • Winch Machines
  • Excavators
  • JCB’s
  • HDD Machinery
  • 25, 50, 100, 150 Ton Crane
  • Shovel

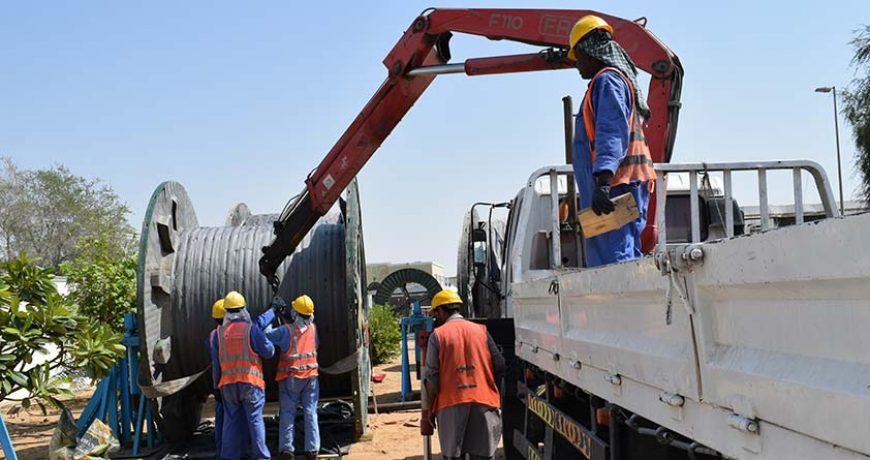

  • Hiab
  • Trailer – Flat bed

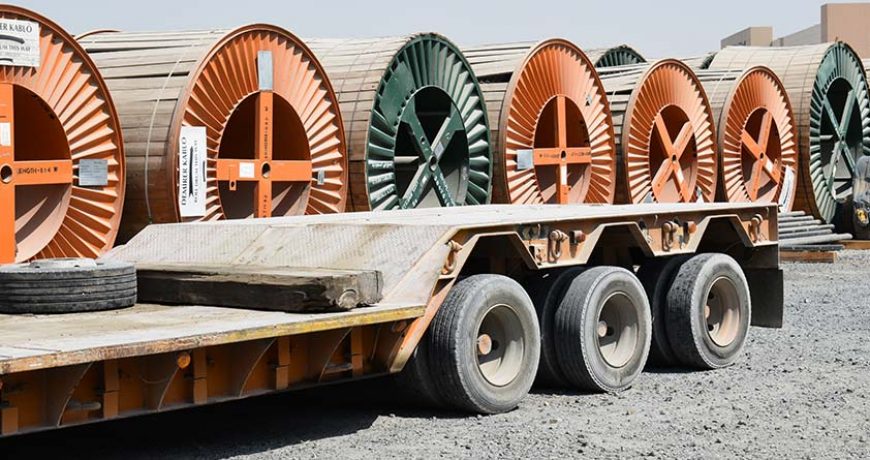

  • Trailer – Low bed
  • Compactor with Roller Machines
  • Dewatering Machines

MANPOWER & CERTIFICATION

Full-fledged in-house facility with competent Project Managers of 25 plus years of experience, Site Managers with 10 to 20 years of experience, Certified and Approved Project Engineer, Site Engineer, Supervisor, Foreman, Charge hand and Labors.

Our engineers have proven their skills and capabilities successfully by executing underground cabling projects all over the UAE. Each site have approved safety officers to ensure safety on site as per UAE safety protocols.

PROCESS

We provide complete Design, Engineering, Procurement, Supply, Civil works, Cable Laying, Jointing, and Termination works, including Testing and Commissioning of cabling work from 11kV upto 400kV. The main steps in Underground Cabling design and engineering are as follows:

  • Preliminary route survey
  • NOCs for services / trial pits
  • Trial pits and collection of information
  • Trial pits drawings
  • Key plan / route / profile drawing
  • Construction NOCs and Services NOCs
  • Final Design and Material Approved
  • Final route survey
  • Route demarcation & measurement
  • Trench excavation
  • Formatting Trench Level

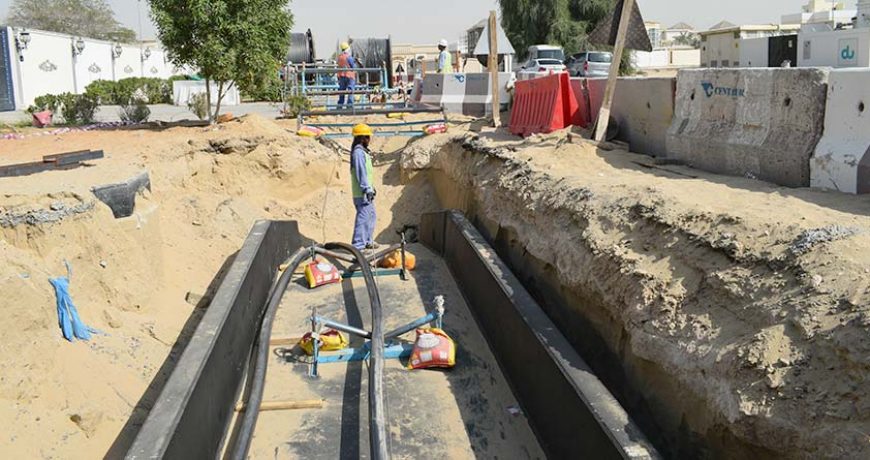

  • Installation of RCC Trough
  • Sand bedding

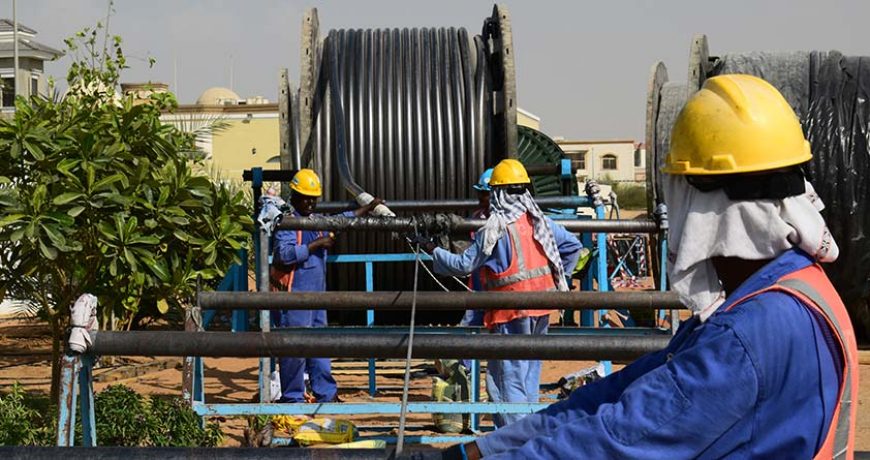

  • Cable laying
  • Sand bedding / compaction
  • Pre-Commissioning Test
  • Trough covering placement
  • Backfilling & reinstatement

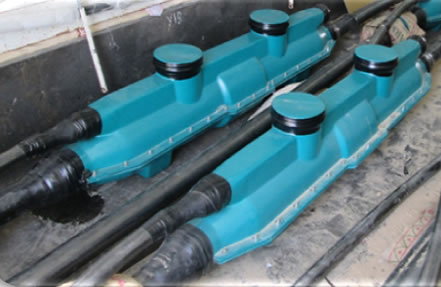

  • Cable jointing
  • Cable termination
  • Protection
  • HVAC Testing Works

CONTRACTING SERVICES

General contracting, often referred to as a traditional delivery system, allows the owner to engage with the architect/engineer to prepare the design of the entire project. Upon design completion, the project scope is competitively bid to a construction firm for a fixed lump sum.

Our responsibilities when serving as the General Contractor include:

  • Providing all materials, labor, equipment and services.
  • Subcontracting with various trade and specialty contractors
  • Applying or assisting in the application process for permits
  • Monitoring schedule and cash flow
  • Maintaining accurate records
  • Ensuring a safe and secure project site
